FIXED IND 5.6UH 6.3A 20 MOHM SMD

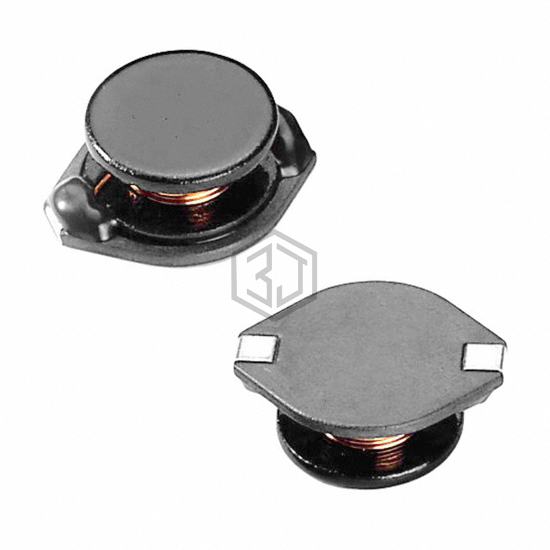

SC5022F-5R6 is a Fixed Inductors manufactured by Signal Transformer. FIXED IND 5.6UH 6.3A 20 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.3 A.
In Stock: 8,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.3 A |
| Current - Saturation (Isat) | 12A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 20mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.750" L x 0.620" W (19.04mm x 15.74mm) |
| Height - Seated (Max) | 0.280" (7.11mm) |
Submit your RFQ for SC5022F-5R6 and get a quote within 24 hours.
