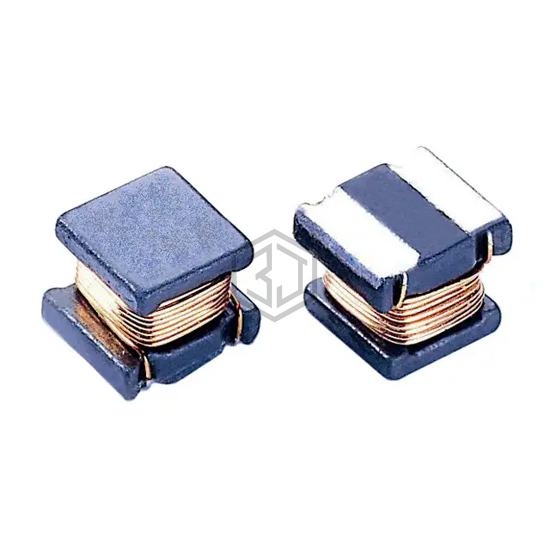

FIXED IND 240NH 6.6A 14 MOHM SMD
SC2220-R24 is a Fixed Inductors manufactured by Signal Transformer. FIXED IND 240NH 6.6A 14 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 6.6 A.
In Stock: 5,008
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 240 nH |
| Tolerance | ±30% |
| Current Rating (Amps) | 6.6 A |
| Current - Saturation (Isat) | 5.3A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.236" L x 0.209" W (6.00mm x 5.30mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for SC2220-R24 and get a quote within 24 hours.
