PWR XFMR LAMINATED 1.2VA TH

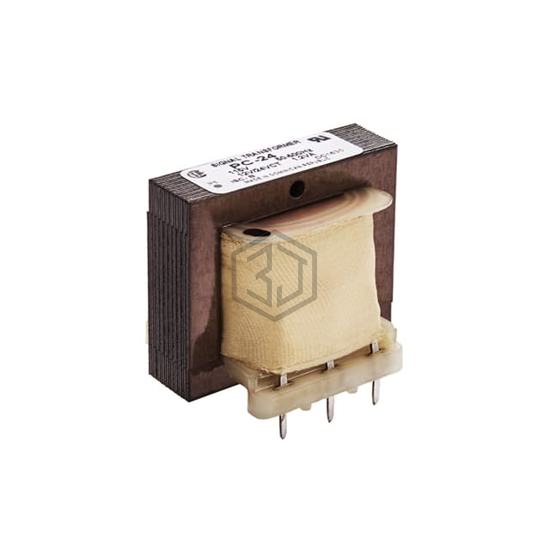

PC-56-20 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 1.2VA TH. Key specifications: mounting type Through Hole, current - output (max) Parallel 40mA, Series 20mA, size / dimension 34.90mm L x 28.60mm W, termination style PC Pin.
In Stock: 3,983
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Laminated Core |
| Voltage - Primary | 115V |
| Voltage - Secondary (Full Load) | Parallel 28V, Series 56V |
| Current - Output (Max) | Parallel 40mA, Series 20mA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Center Tap | No |
| Power - Max | 1.2VA |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Size / Dimension | 34.90mm L x 28.60mm W |
| Height - Seated (Max) | 30.15mm |
| Voltage - Isolation | 1500Vrms |
| Weight | 0.188 lb (85.28 g) |
