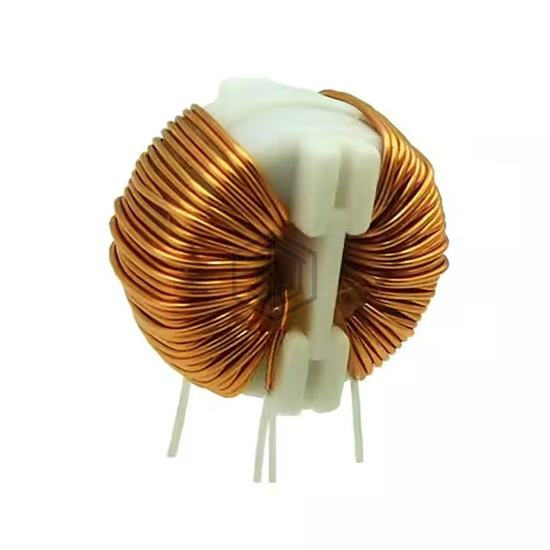

COMMON MODE CHOKE TOROID 4.24MH
LPTC-V-4.25-1-150 is a Common Mode Chokes manufactured by Signal Transformer. COMMON MODE CHOKE TOROID 4.24MH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Vertical, No Base, 4 PC Pin, size / dimension 0.709" Dia x 0.512" L (18.00mm x 13.00mm).
In Stock: 63
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 4.25 mH @ 1 kHz |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 150mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.709" Dia x 0.512" L (18.00mm x 13.00mm) |
| Height (Max) | 0.669" (17.00mm) |
| Package / Case | Vertical, No Base, 4 PC Pin |
Submit your RFQ for LPTC-V-4.25-1-150 and get a quote within 24 hours.
