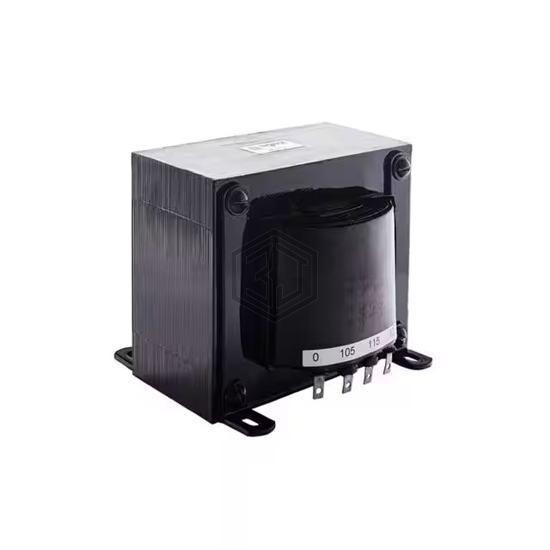

80-12 - Signal Transformer - Power Transformers

80-12

Signal Transformer

PWR XFMR LAMINATED 960VA CHAS MT

80-12 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 960VA CHAS MT. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 24A, Series 12A, size / dimension 162.00mm L x 152.40mm W, termination style Solder, Quick Connect.

In Stock: 1,161

Product Attributes

AttributeValue
Product StatusActive
TypeLaminated Core
Voltage - Primary105V, 115V, 125V
Voltage - Secondary (Full Load)Parallel 40V, Series 80V
Current - Output (Max)Parallel 24A, Series 12A
Primary Winding(s)Single, Multiple Taps
Secondary Winding(s)Dual
Center TapYes
Power - Max960VA
Mounting TypeChassis Mount
Termination StyleSolder, Quick Connect
Size / Dimension162.00mm L x 152.40mm W
Height - Seated (Max)134.90mm
Voltage - Isolation1500Vrms
Weight29 lbs (13.2 kg)

Frequently Asked Questions

80-12 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 960VA CHAS MT

The mounting type of 80-12 is Chassis Mount.

The current rating of 80-12 is Parallel 24A, Series 12A.

The size of 80-12 is 162.00mm L x 152.40mm W.
