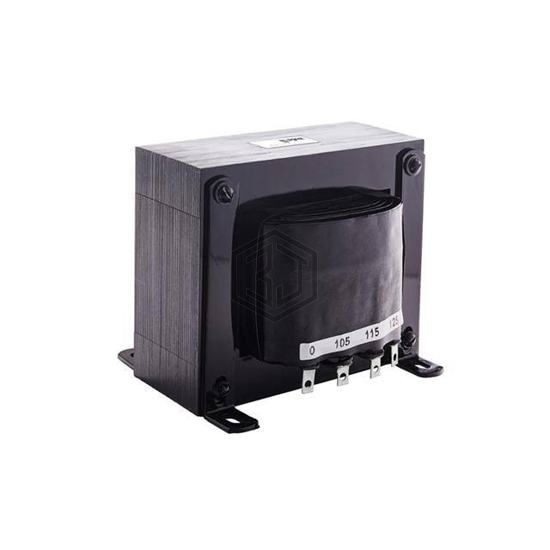

68-25 - Signal Transformer - Power Transformers

68-25

Signal Transformer

PWR XFMR LAMINATED 1700VA CHAS

68-25 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 1700VA CHAS. Key specifications: mounting type Chassis Mount, current - output (max) Parallel 50A, Series 25A, size / dimension 162.00mm L x 184.20mm W, termination style Solder, Quick Connect.

In Stock: 5,284

Product Attributes

AttributeValue
Product StatusActive
TypeLaminated Core
Voltage - Primary105V, 115V, 125V, 230V
Voltage - Secondary (Full Load)Parallel 34V, Series 68V
Current - Output (Max)Parallel 50A, Series 25A
Primary Winding(s)Dual
Secondary Winding(s)Dual
Center TapYes
Power - Max1700VA
Mounting TypeChassis Mount
Termination StyleSolder, Quick Connect
Size / Dimension162.00mm L x 184.20mm W
Height - Seated (Max)134.90mm
Voltage - Isolation1500Vrms
Weight40 lbs (18.1 kg)

Frequently Asked Questions

68-25 is a Power Transformers manufactured by Signal Transformer. PWR XFMR LAMINATED 1700VA CHAS

The mounting type of 68-25 is Chassis Mount.

The current rating of 68-25 is Parallel 50A, Series 25A.

The size of 68-25 is 162.00mm L x 184.20mm W.
