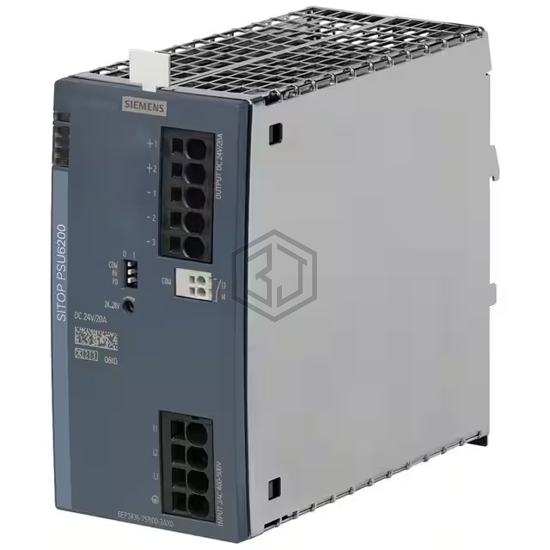

SITOP PSU6200 24 V/20 A
6EP34367SB003AX0 is a Industrial, DIN Rail Power Supplies manufactured by Siemens. SITOP PSU6200 24 V/20 A. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 6.10" L x 2.76" W x 5.31" H (155.0mm x 70.0mm x 135.0mm), number of outputs 1.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 400 ~ 500 VAC, 323 ~ 576 VAC |
| DC Voltage - Input (Min) | 450V |
| DC Voltage - Input (Max) | 600V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 95.9% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 6.10" L x 2.76" W x 5.31" H (155.0mm x 70.0mm x 135.0mm) |
| Approval Agency | CB, cCSAus, CE, CSA, cUL, cULus, UL |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for 6EP34367SB003AX0 and get a quote within 24 hours.
