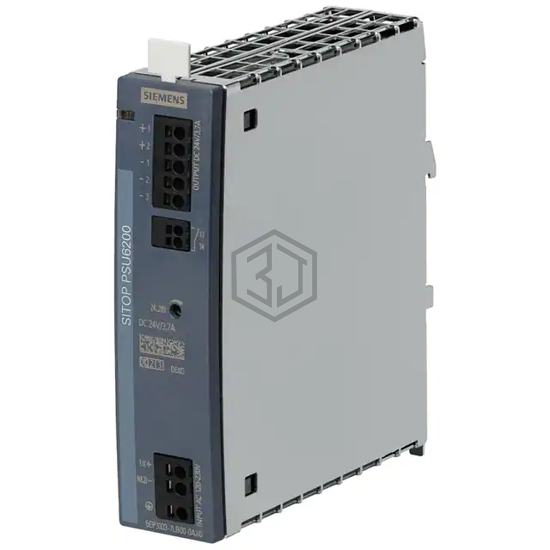

SITOP PSU6200 3.7 A NEC CLASS II
6EP33337LB000AX0 is a Industrial, DIN Rail Power Supplies manufactured by Siemens. SITOP PSU6200 3.7 A NEC CLASS II. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 3.7A, size / dimension 4.92" L x 1.38" W x 5.31" H (125.0mm x 35.0mm x 135.0mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC, 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 99V |
| DC Voltage - Input (Max) | 275V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.7A |
| Power (Watts) | 89W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 89.3% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 4.92" L x 1.38" W x 5.31" H (125.0mm x 35.0mm x 135.0mm) |
| Approval Agency | CB, cCSAus, CE, CSA, cUL, cULus, UL |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for 6EP33337LB000AX0 and get a quote within 24 hours.
