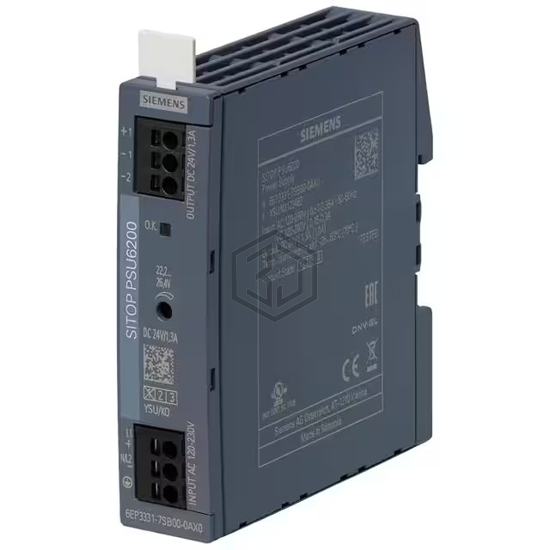

SITOP PSU6200 24 V/1.3 A
6EP33317SB000AX0 is a Industrial, DIN Rail Power Supplies manufactured by Siemens. SITOP PSU6200 24 V/1.3 A. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 1.3A, size / dimension 3.46" L x 0.98" W x 3.94" H (88.0mm x 25.0mm x 100.0mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 120 ~ 240 VAC, 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 275V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.3A |
| Power (Watts) | 31W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 86.3% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 3.46" L x 0.98" W x 3.94" H (88.0mm x 25.0mm x 100.0mm) |
| Approval Agency | CB, cCSAus, CE, CSA, cUL, cULus, UL |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for 6EP33317SB000AX0 and get a quote within 24 hours.
