MODULE,SITOP,DC,USV,24V/40A,W/O-

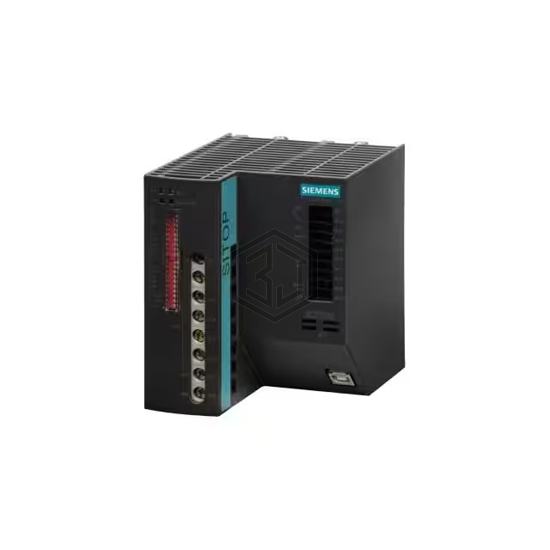

6EP19312FC21 is a Industrial, DIN Rail Power Supplies manufactured by Siemens. MODULE,SITOP,DC,USV,24V/40A,W/O-. Key specifications: operating temperature -25°C ~ 60°C, current - output (max) 40A, size / dimension 2.83" L x 2.83" W x 3.15" H (72.0mm x 72.0mm x 80.0mm), number of outputs 1.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 22V |
| DC Voltage - Input (Max) | 29V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 97.2% |
| Operating Temperature | -25°C ~ 60°C |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 2.83" L x 2.83" W x 3.15" H (72.0mm x 72.0mm x 80.0mm) |
| Approval Agency | CE, CSA, cULus, UL |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for 6EP19312FC21 and get a quote within 24 hours.
