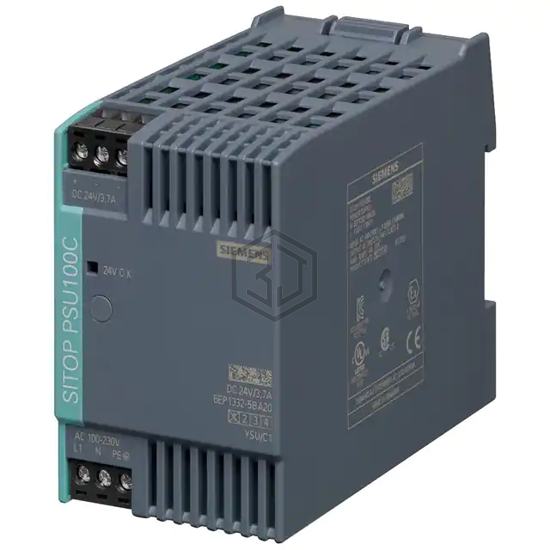

SITOP PSU100C 24 V/3.7 A NEC CLA
6EP13325BA20 is a Industrial, DIN Rail Power Supplies manufactured by Siemens. SITOP PSU100C 24 V/3.7 A NEC CLA. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 3.7A, size / dimension 3.94" L x 2.07" W x 3.15" H (100.0mm x 52.5mm x 80.0mm), number of outputs 1.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 230 VAC, 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 110V |
| DC Voltage - Input (Max) | 300V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3.7A |
| Power (Watts) | 89W |
| Voltage - Isolation | - |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 3.94" L x 2.07" W x 3.15" H (100.0mm x 52.5mm x 80.0mm) |
| Approval Agency | CB, cCSAus, CE, CSA, cUL, cULus, UL |
| Standard Number | 60950-1; UL 508 |
