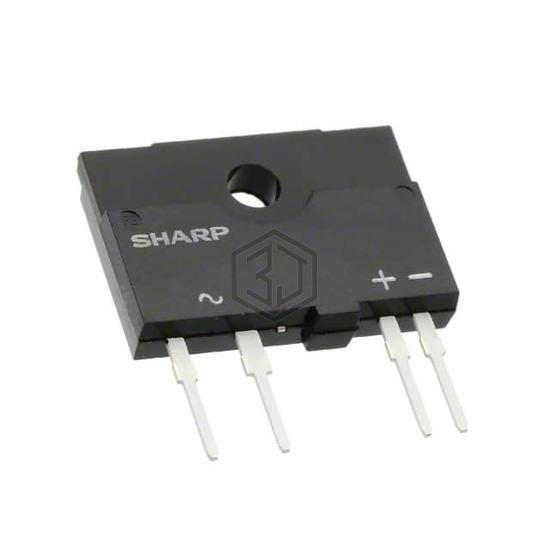

OPTOISOLATOR 3KV PWR TRIAC 4SIP
S208T02F is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 3KV PWR TRIAC 4SIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SIP.
In Stock: 6,517
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | Triac, Power |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 3000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 30V/µs |
| Current - LED Trigger (Ift) (Max) | 8mA |
| Current - On State (It (RMS)) (Max) | 8 A |
| Current - Hold (Ih) | 50mA |
| Turn On Time | 10ms (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -25°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Approval Agency | UL |
Submit your RFQ for S208T02F and get a quote within 24 hours.
