OPTOISOLATOR 4KV PWR TRIAC 8DIP

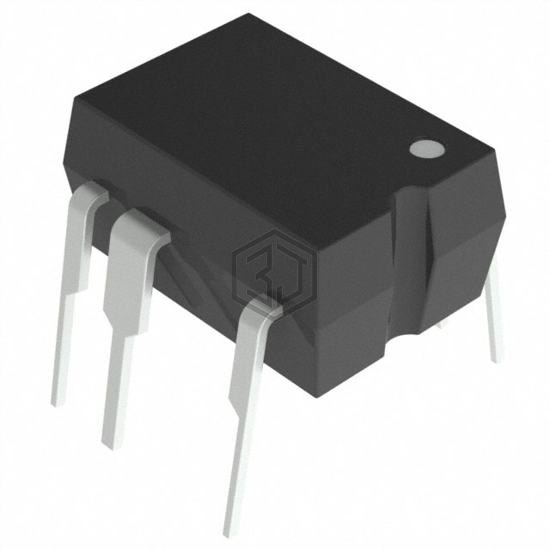

PR36MF51NSZF is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 4KV PWR TRIAC 8DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 85°C, voltage - forward (vf) (typ) 1.2V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 3,763
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Triac, Power |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 100V/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 600 mA |
| Current - Hold (Ih) | 25mA |
| Turn On Time | 100µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-DIP |
| Approval Agency | CSA, UR |
