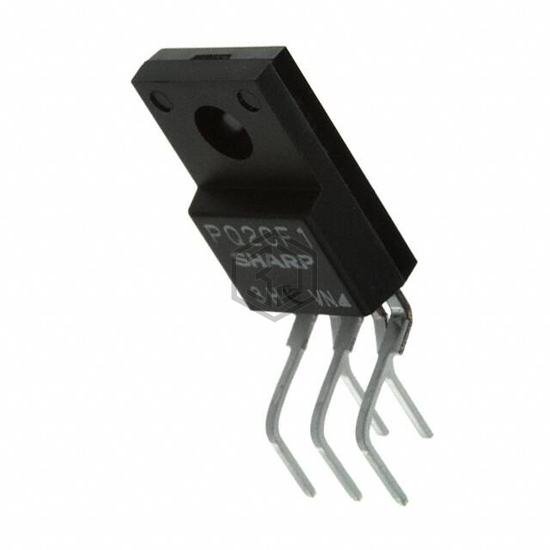

IC REG BST FLYBCK ADJ 2.5A TO220
PQ2CF1J0000H is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Sharp Microelectronics. IC REG BST FLYBCK ADJ 2.5A TO220. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C (TA), package / case TO-220-5 Formed Leads, current - output 2.5A (Switch).
In Stock: 4,325
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 4.5V |
| Voltage - Output (Max) | 35V (Switch) |
| Current - Output | 2.5A (Switch) |
| Frequency - Switching | 50kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 Formed Leads |
| Supplier Device Package | TO-220 |
PQ2CF1J0000H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PQ2CF1 | Sharp Microelectronics | IC REG BST FLYBCK ADJ 2.5A TO220 | 100% | View |
| UC2577T-ADJ | Texas Instruments | IC REG MULT CONFG ADJ 3A TO220-5 | 64% | View |
| LM2577T-ADJ | Texas Instruments | IC REG MULT CONFG ADJ 3A TO220-5 | 55% | View |
| LM2577T-ADJ/NOPB | Texas Instruments | IC REG MULT CONFG ADJ 3A TO220-5 | 55% | View |
| LM2577T-ADJ/LF03 | Texas Instruments | IC REG MULT CONFG ADJ 3A TO220-5 | 55% | View |
| LM2577T-ADJ/LB02 | Texas Instruments | IC REG MULT CONFG ADJ 3A TO220-5 | 55% | View |
