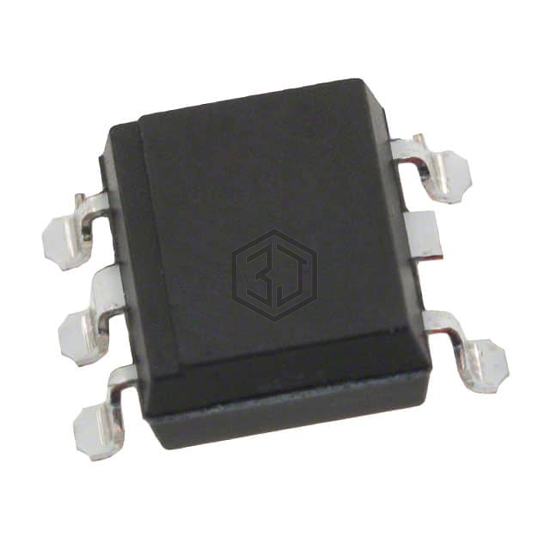

OPTOISOLATOR 5KV TRIAC 6SMD
PC3SD21YXPLF is a Optoisolators - Triac, SCR Output manufactured by Sharp Microelectronics. OPTOISOLATOR 5KV TRIAC 6SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD.
In Stock: 1,727
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Triac |
| Zero Crossing Circuit | Yes |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | - |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Current - Hold (Ih) | 3.5mA |
| Turn On Time | 50µs (Max) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD |
| Supplier Device Package | 6-SMD |
| Approval Agency | CSA, UR, VDE |
Submit your RFQ for PC3SD21YXPLF and get a quote within 24 hours.
