RF ANT 915MHZ/2.45GHZ/5GHZ PCB

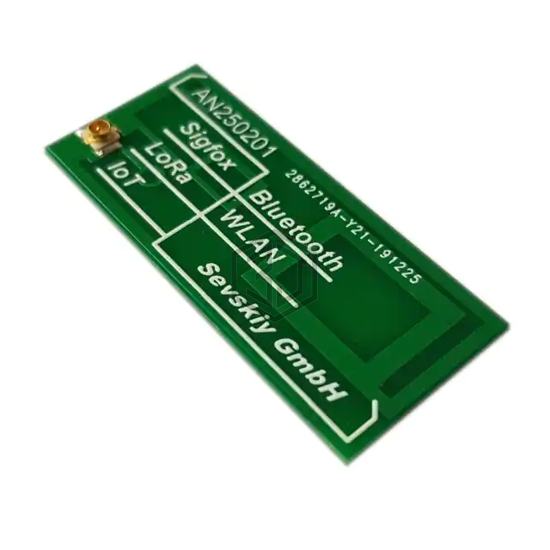

AN250201-01H is a RF Antennas manufactured by Sevskiy GmbH. RF ANT 915MHZ/2.45GHZ/5GHZ PCB. Key specifications: mounting type Connector Mount, termination U.FL (UMCC), IPEX MHF1, power - max 10 W, frequency range 860MHz ~ 925MHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz.
In Stock: 196
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, General ISM, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 868MHz, 915MHz, 2.45GHz, 5.5GHz, 6.5GHz |
| Frequency Range | 860MHz ~ 925MHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 5 |
| VSWR | 2, 3, 2, 2, 3 |
| Return Loss | -10dB, -6dB, -10dB, -10dB, -6dB |
| Gain | 1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi, 4,6dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 0.039" (1.00mm) |
| Applications | 3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox,Wi-Fi, Wi-Fi 6E |
Submit your RFQ for AN250201-01H and get a quote within 24 hours.
