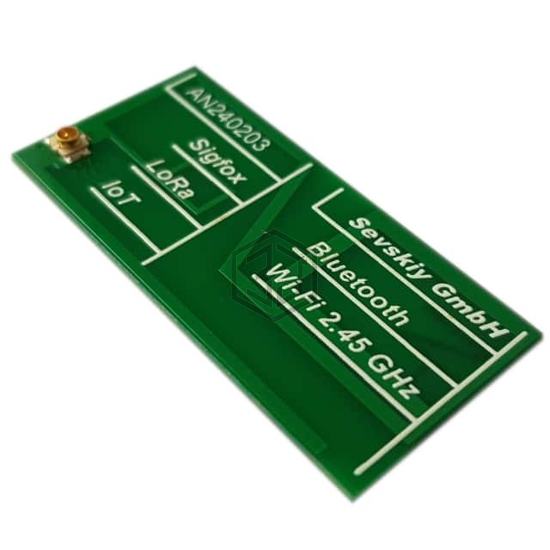

RF ANT 915MHZ/2GHZ/2.45GHZ PCB
AN240203-01H is a RF Antennas manufactured by Sevskiy GmbH. RF ANT 915MHZ/2GHZ/2.45GHZ PCB. Key specifications: mounting type Connector Mount, termination U.FL (UMCC), IPEX MHF1, power - max 10 W, frequency range 860MHz ~ 925MHz, 1.9GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz.
In Stock: 305
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Bluetooth, Cellular, General ISM, WiFi |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) |
| Frequency (Center/Band) | 868MHz, 915MHz, 2GHz, 2.45GHz |
| Frequency Range | 860MHz ~ 925MHz, 1.9GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 4 |
| VSWR | 2, 3, 2, 3 |
| Return Loss | -10dB, -6dB, -6dB, -10dB |
| Gain | 1.1dBi, 1.3dBi, 2.3dBi, 4.2dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 0.039" (1.00mm) |
| Applications | 3G, Bluetooth, Cellular, GSM, IoT, ISM, Lora, Sigfox, Wi-Fi |
Submit your RFQ for AN240203-01H and get a quote within 24 hours.
