RF ANT 915MHZ/1575MHZ/2GHZ PCB

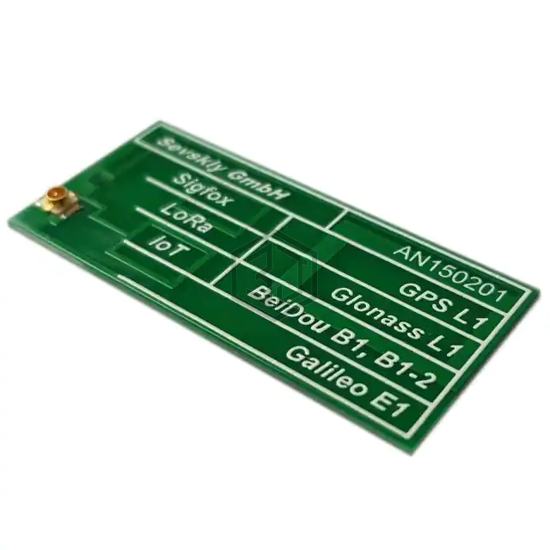

AN150201-01H is a RF Antennas manufactured by Sevskiy GmbH. RF ANT 915MHZ/1575MHZ/2GHZ PCB. Key specifications: mounting type Connector Mount, termination U.FL (UMCC), IPEX MHF1, power - max 10 W, frequency range 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz.
In Stock: 248
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM |
| Frequency Group | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 868MHz, 915MHz, 1.575GHz, 2GHz |
| Frequency Range | 860MHz ~ 925MHz, 1.559GHz ~ 1.61GHz, 1.9GHz ~ 2.2GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 3 |
| VSWR | 3, 3, 3 |
| Return Loss | -6dB, -6dB, -6dB |
| Gain | 1.2dBi, 1.4dBi, 1.1dBi |
| Power - Max | 10 W |
| Features | - |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Connector Mount |
| Height (Max) | 0.039" (1.00mm) |
| Applications | 2G, 3G, Beidou, COMPASS, GALILEO, GLONASS, GNSS, GPS, GSM, LoRaWAN, LPWA, NB-IoT, UMTS |
Submit your RFQ for AN150201-01H and get a quote within 24 hours.
