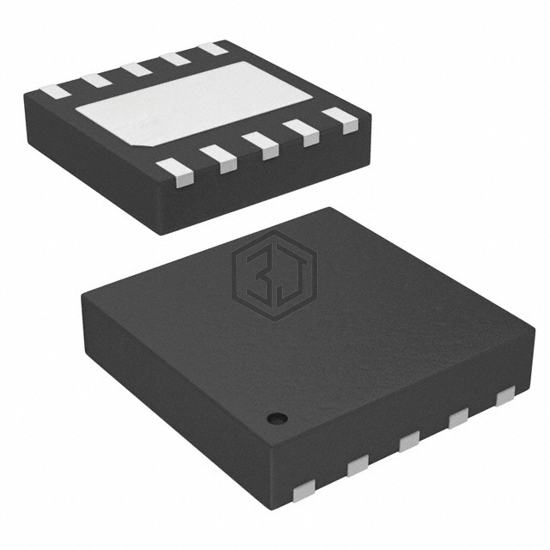

TVS DIODE 3.3VWM 18VC SLP2626P10
RCLAMP3304N.TCT is a TVS - Diodes manufactured by Semtech Corporation. TVS DIODE 3.3VWM 18VC SLP2626P10. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 10-UFDFN Exposed Pad.
In Stock: 44,763
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.5V |
| Voltage - Clamping (Max) @ Ipp | 18V |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
| Power - Peak Pulse | 450W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.8pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | SLP2626P10 (2.6x2.6) |
Submit your RFQ for RCLAMP3304N.TCT and get a quote within 24 hours.
