FILTER LC(PI) 19NH/12PF ESD SMD

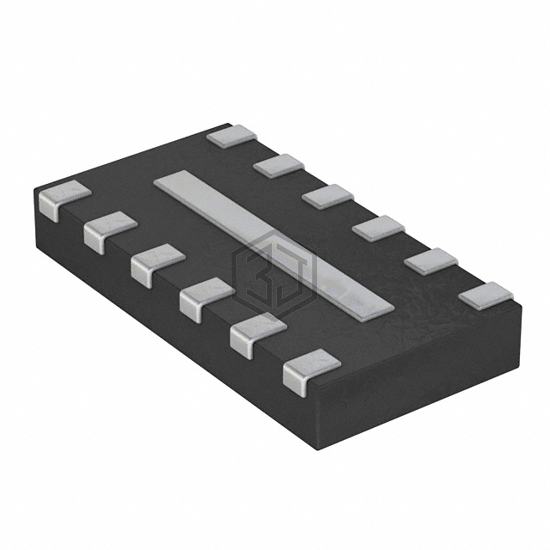

ECLAMP2396P.TCT is a EMI/RFI Filters (LC, RC Networks) manufactured by Semtech Corporation. FILTER LC(PI) 19NH/12PF ESD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 12-UFDFN Exposed Pad, size / dimension 0.118" L x 0.063" W (3.00mm x 1.60mm).
In Stock: 7,395
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 5th |
| Technology | LC (Pi) |
| Number of Channels | 6 |
| Center / Cutoff Frequency | 150MHz (Cutoff) |
| Attenuation Value | 30dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 18 |
| Current | - |
| Values | L = 19nH, C = 12pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad |
| Size / Dimension | 0.118" L x 0.063" W (3.00mm x 1.60mm) |
| Height | 0.026" (0.65mm) |
Submit your RFQ for ECLAMP2396P.TCT and get a quote within 24 hours.
