FILTER RC(PI) 200 OHM/12PF SMD

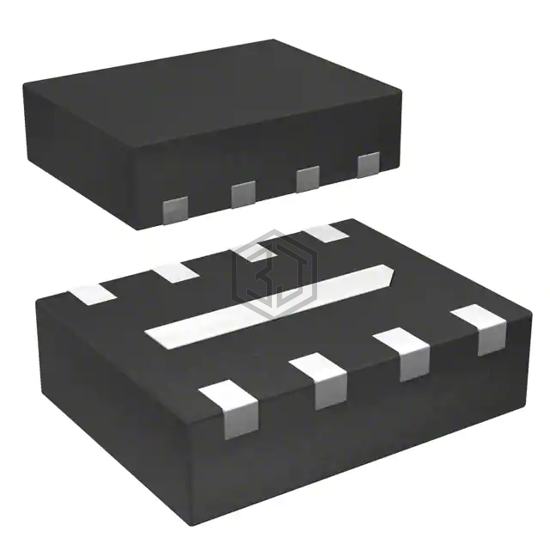

ECLAMP2384K.TCT is a EMI/RFI Filters (LC, RC Networks) manufactured by Semtech Corporation. FILTER RC(PI) 200 OHM/12PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-UFDFN Exposed Pad, size / dimension 0.067" L x 0.051" W (1.70mm x 1.30mm).
In Stock: 897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 800MHz ~ 2.7GHz |
| Resistance - Channel (Ohms) | 200 |
| Current | - |
| Values | R = 200Ohms, C = 12pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Height | 0.022" (0.55mm) |
