FILTER RC(PI) 100 OHM/11PF SMD

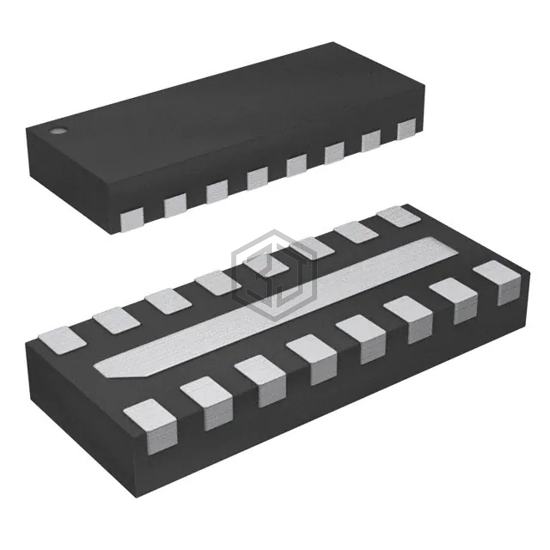

ECLAMP2378P.TCT is a EMI/RFI Filters (LC, RC Networks) manufactured by Semtech Corporation. FILTER RC(PI) 100 OHM/11PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-UFDFN Exposed Pad, size / dimension 0.157" L x 0.063" W (4.00mm x 1.60mm).
In Stock: 11,214
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1.8GHz ~ 2.5GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 10pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFDFN Exposed Pad |
| Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) |
| Height | 0.026" (0.65mm) |
Submit your RFQ for ECLAMP2378P.TCT and get a quote within 24 hours.
