ESD/EMI PROT FOR COLOR LCD INT

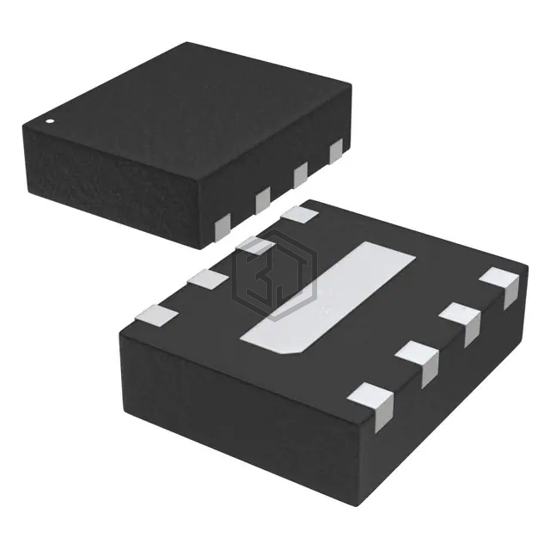

ECLAMP2374KQTCT is a EMI/RFI Filters (LC, RC Networks) manufactured by Semtech Corporation. ESD/EMI PROT FOR COLOR LCD INT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-UFDFN Exposed Pad, size / dimension 0.067" L x 0.051" W (1.70mm x 1.30mm).
In Stock: 4,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 4 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1.8GHz ~ 2.5GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 10pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 125°C |
| Applications | Automotive |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Height | 0.020" (0.50mm) |
Submit your RFQ for ECLAMP2374KQTCT and get a quote within 24 hours.
