FILTER RC(PI) 100 OHM/12PF SMD

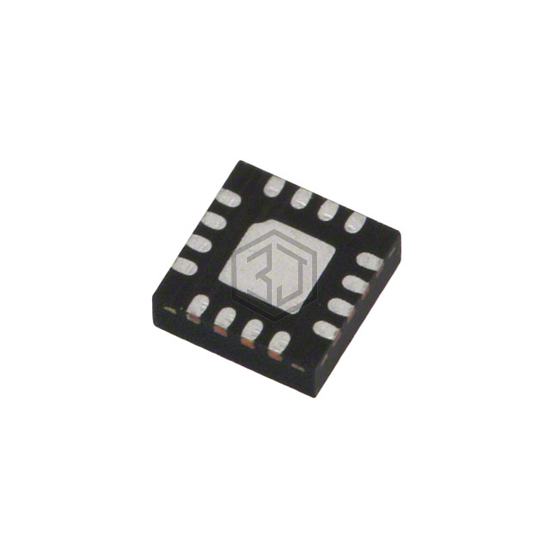

ECLAMP2342N.TCT is a EMI/RFI Filters (LC, RC Networks) manufactured by Semtech Corporation. FILTER RC(PI) 100 OHM/12PF SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-QFN, size / dimension 0.118" L x 0.118" W (3.00mm x 3.00mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 2nd |
| Technology | RC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | - |
| Attenuation Value | 30dB @ 1GHz ~ 2.5GHz |
| Resistance - Channel (Ohms) | 100 |
| Current | - |
| Values | R = 100Ohms, C = 12pF (Total) |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-QFN |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height | 0.039" (1.00mm) |
Submit your RFQ for ECLAMP2342N.TCT and get a quote within 24 hours.
