DC DC CONVERTER 5V 75W

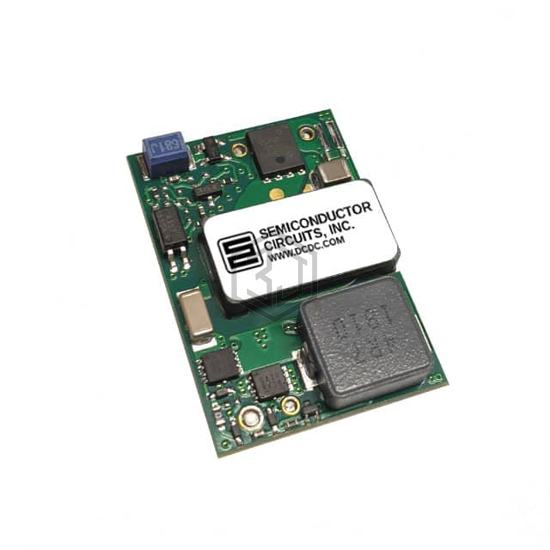

CPT15A48NS is a DC DC Converters manufactured by Semiconductor Circuits, Inc.. DC DC CONVERTER 5V 75W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case Sixteenth Brick, current - output (max) 15A.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 93% |
| Mounting Type | Surface Mount |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.5mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CSA, TUV, UL |
| Standard Number | - |
Submit your RFQ for CPT15A48NS and get a quote within 24 hours.
