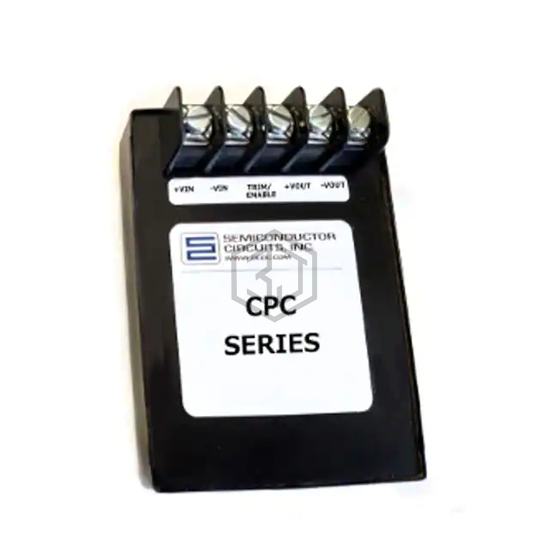

DC/DC CONVERTER 12V 72W
CPC6B18N is a DC DC Converters manufactured by Semiconductor Circuits, Inc.. DC/DC CONVERTER 12V 72W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 6A, size / dimension 3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm).
In Stock: 4,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 72W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm) |
| Approval Agency | - |
| Standard Number | - |
