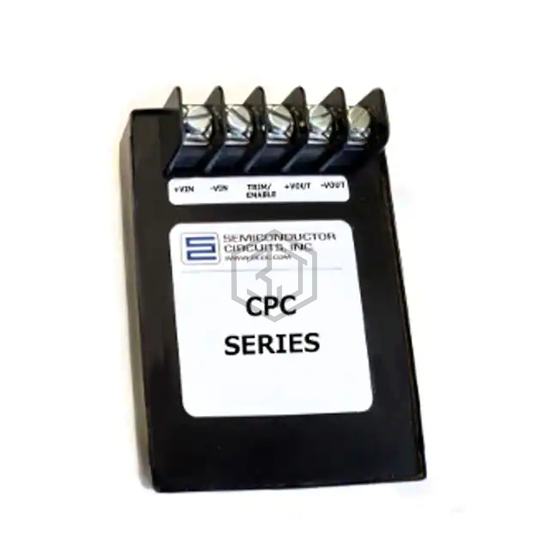

DC/DC CONVERTER 12V 120W
CPC10B36 is a DC DC Converters manufactured by Semiconductor Circuits, Inc.. DC/DC CONVERTER 12V 120W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 10A, size / dimension 3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm).
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 120W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.50" L x 2.50" W x 1.50" H (88.9mm x 63.5mm x 38.1mm) |
| Approval Agency | - |
| Standard Number | - |
