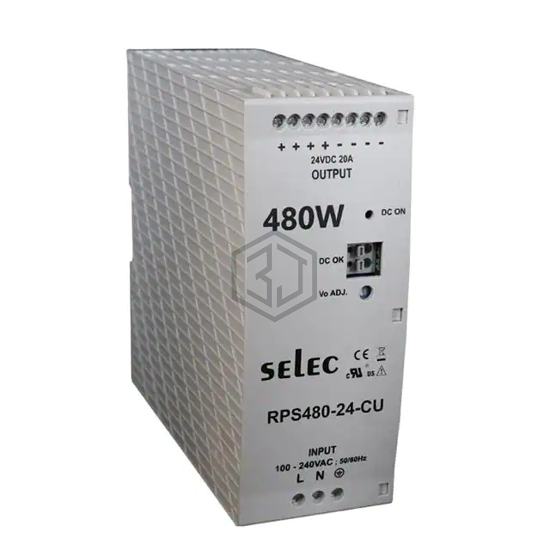

480W, 24V/20A DIN RAIL MOUNTED P
RPS480-24-CU is a Industrial, DIN Rail Power Supplies manufactured by Selec Controls USA Inc.. 480W, 24V/20A DIN RAIL MOUNTED P. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 6.05" L x 2.36" W x 6.06" H (153.7mm x 60.0mm x 154.0mm), number of outputs 1.
In Stock: 7,043
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 93.5% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 6.05" L x 2.36" W x 6.06" H (153.7mm x 60.0mm x 154.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | 62368-1; UL 508 |
