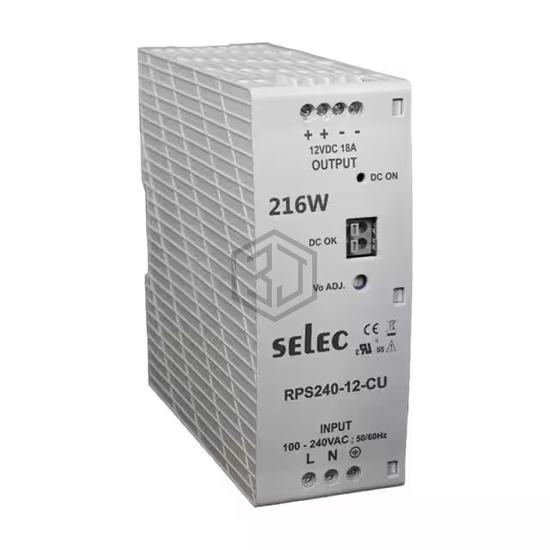

216W, 12V/18A DIN RAIL MOUNTED P
RPS240-12-CU is a Industrial, DIN Rail Power Supplies manufactured by Selec Controls USA Inc.. 216W, 12V/18A DIN RAIL MOUNTED P. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 18A, size / dimension 5.12" L x 1.97" W x 5.35" H (130.0mm x 50.0mm x 136.0mm), number of outputs 1.
In Stock: 8,513
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 18A |
| Power (Watts) | 216W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 5.12" L x 1.97" W x 5.35" H (130.0mm x 50.0mm x 136.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | 62368-1; UL 508 |
Submit your RFQ for RPS240-12-CU and get a quote within 24 hours.
