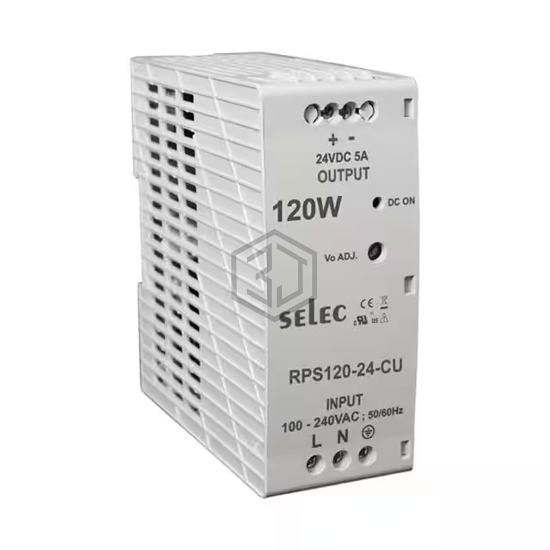

120W, 24V/5A DIN RAIL MOUNTED PO
RPS120-24-CU is a Industrial, DIN Rail Power Supplies manufactured by Selec Controls USA Inc.. 120W, 24V/5A DIN RAIL MOUNTED PO. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 5A, size / dimension 3.84" L x 1.69" W x 4.32" H (97.5mm x 43.0mm x 109.8mm), number of outputs 1.
In Stock: 7,875
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.84" L x 1.69" W x 4.32" H (97.5mm x 43.0mm x 109.8mm) |
| Approval Agency | CE, cULus |
| Standard Number | 62368-1; UL 508 |
Submit your RFQ for RPS120-24-CU and get a quote within 24 hours.
