AC/DC CONVERTER 5V 25W

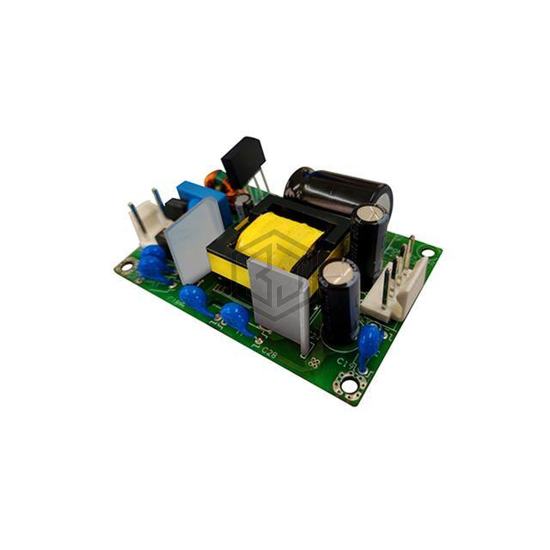

OPS2X3-40-05-A-1-CU is a AC DC Converters manufactured by Selec Controls USA Inc.. AC/DC CONVERTER 5V 25W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 127 ~ 370 VDC, size / dimension 3.00" L x 2.00" W x 1.16" H (76.2mm x 50.8mm x 29.5mm).
In Stock: 5,689
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 25W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 78% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 1.16" H (76.2mm x 50.8mm x 29.5mm) |
| Approval Agency | cULus |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for OPS2X3-40-05-A-1-CU and get a quote within 24 hours.
