PTC RESET FUSE 6V 2.6A 1812

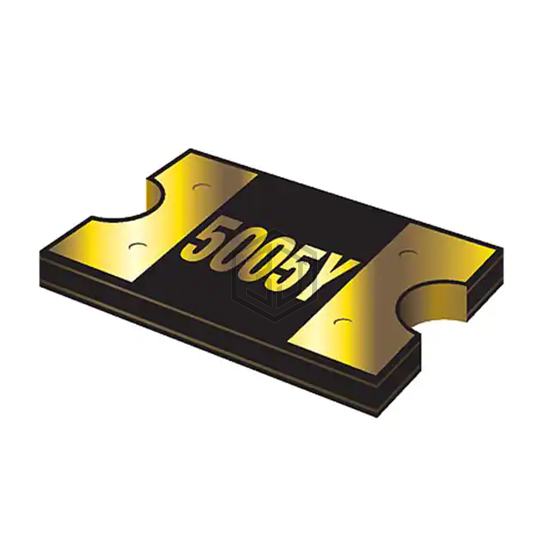

PFMF.260.2 is a PTC Resettable Fuses manufactured by SCHURTER Inc.. PTC RESET FUSE 6V 2.6A 1812. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1812 (4532 Metric), Concave, current - max 100 A.
In Stock: 541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Max | 100 A |
| Current - Hold (Ih) (Max) | 2.6 A |
| Current - Trip (It) | 5.2 A |
| Time to Trip | 5 s |
| Resistance - Initial (Ri) (Min) | 15 mOhms |
| Resistance - Post Trip (R1) (Max) | 80 mOhms |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
Submit your RFQ for PFMF.260.2 and get a quote within 24 hours.
