FIXED IND 20UH 7A 12 MOHM TH

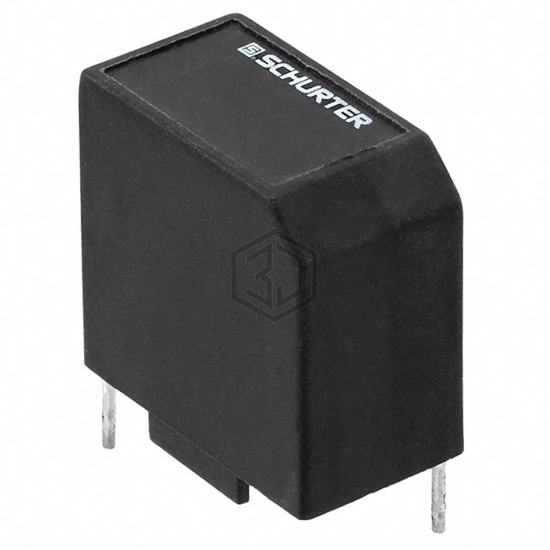

DLH-22-0008 is a Fixed Inductors manufactured by SCHURTER Inc.. FIXED IND 20UH 7A 12 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Horizontal - Corner Terminals, current rating (amps) 7 A.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 20 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 7 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 12mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.906" L x 0.512" W (23.00mm x 13.00mm) |
| Height - Seated (Max) | 0.945" (24.00mm) |
