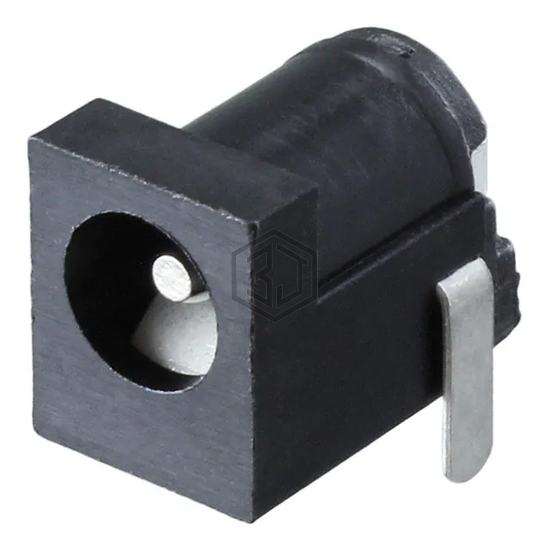

CONN PWR JACK 2.35X6MM SOLDER
4840.2211 is a Barrel - Power Connectors manufactured by SCHURTER Inc.. CONN PWR JACK 2.35X6MM SOLDER. Key specifications: mounting type Panel Mount, voltage - rated 12VAC/DC, current rating (amps) 500 mA, termination Solder.
In Stock: 496
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Jack |
| Gender | Male |
| Industry Recognized Mating Diameter | 2.35mm ID (0.093"), 6.00mm OD (0.236") |
| Actual Diameter | 0.093" (2.35mm ID), 0.236" (6.00mm OD) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Termination | Solder |
| Shielding | Unshielded |
| Features | - |
| Insulation Color | Black |
| Voltage - Rated | 12VAC/DC |
| Current Rating (Amps) | 500 mA |
| Mating Length/Depth | - |
| Ingress Protection | - |
| Material Flammability Rating | - |
Submit your RFQ for 4840.2211 and get a quote within 24 hours.
