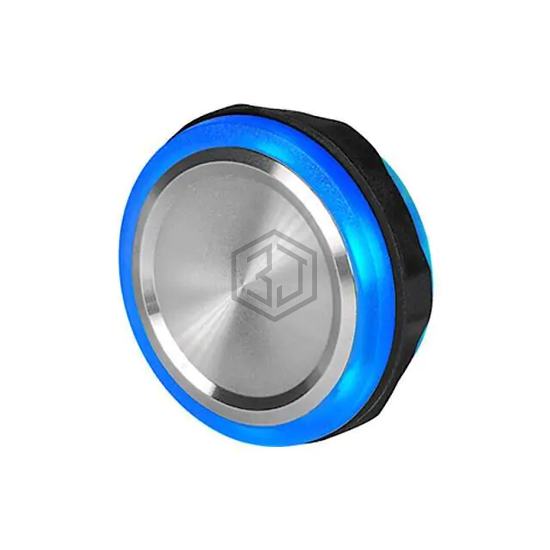

MSS 19 SWITCH LI CONNECTOR
3-126-722 is a Pushbutton Switches manufactured by SCHURTER Inc.. MSS 19 SWITCH LI CONNECTOR. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 85°C, voltage rating - dc 60 V, current rating (amps) 100mA (DC).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Anti-Vandal, Illuminated |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 100mA (DC) |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 60 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | - |
| Color - Actuator/Cap | Silver |
| Illumination Type, Color | LED, Red/Green/Blue |
| Illumination Voltage (Nominal) | 1.7, 2.6, 2.6 VDC |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Panel Cutout Dimensions | Circular - 19.00mm Dia |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 3-126-722 and get a quote within 24 hours.
