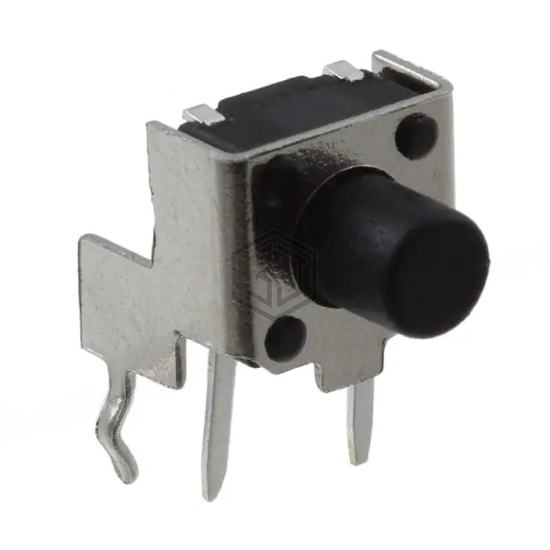

SWITCH TACTILE SPST-NO 0.05A 12V
1301.9503 is a Tactile Switches manufactured by SCHURTER Inc.. SWITCH TACTILE SPST-NO 0.05A 12V. Key specifications: mounting type Through Hole, Right Angle, operating temperature -16°C ~ 60°C, termination style PC Pin, ingress protection IP40.
In Stock: 3,625
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole, Right Angle |
| Actuator Height off PCB, Vertical | - |
| Actuator Length, Right Angle | 6.15mm |
| Actuator Orientation | Side Actuated |
| Termination Style | PC Pin |
| Outline | 7.40mm x 7.00mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 160gf |
| Ingress Protection | IP40 |
| Features | Tactile Feedback |
| Operating Temperature | -16°C ~ 60°C |
Submit your RFQ for 1301.9503 and get a quote within 24 hours.
