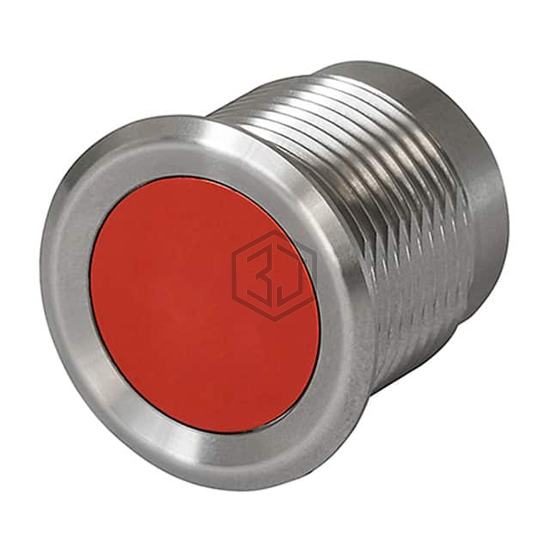

SWITCH PUSH SPST-NO 100MA 42V RD
1241.2903.002 is a Pushbutton Switches manufactured by SCHURTER Inc.. SWITCH PUSH SPST-NO 100MA 42V RD. Key specifications: mounting type Panel Mount, Front, operating temperature -20°C ~ 60°C, voltage rating - dc 60 V, current rating (amps) 100mA (AC/DC).
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Piezo, Anti-Vandal |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Current Rating (Amps) | 100mA (AC/DC) |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 60 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | B (Embossed) |
| Color - Actuator/Cap | Red |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Termination Style | Wire Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Epoxy Sealed Terminals |
| Panel Cutout Dimensions | Circular - 21.15mm Dia |
| Operating Temperature | -20°C ~ 60°C |
Submit your RFQ for 1241.2903.002 and get a quote within 24 hours.
