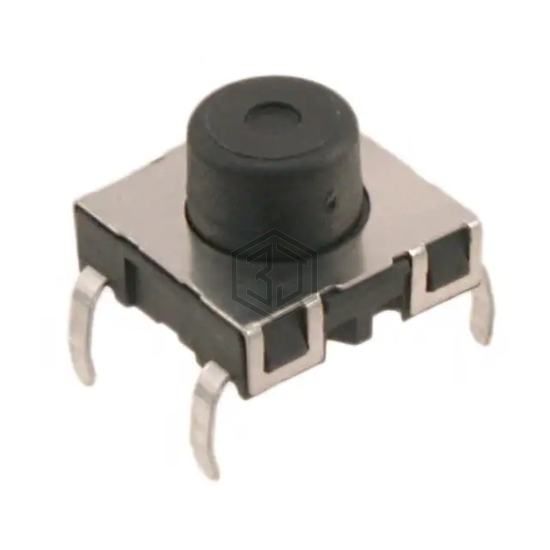

SWITCH TACTILE SPST-NO 0.05A 42V
1241.1625.5 is a Tactile Switches manufactured by SCHURTER Inc.. SWITCH TACTILE SPST-NO 0.05A 42V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, termination style PC Pin, ingress protection IP67 - Dust Tight, Waterproof.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 42VDC |
| Actuator Type | Standard |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 11.35mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 11.40mm x 11.40mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 220gf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Tactile Feedback |
| Operating Temperature | -40°C ~ 85°C |
Submit your RFQ for 1241.1625.5 and get a quote within 24 hours.
