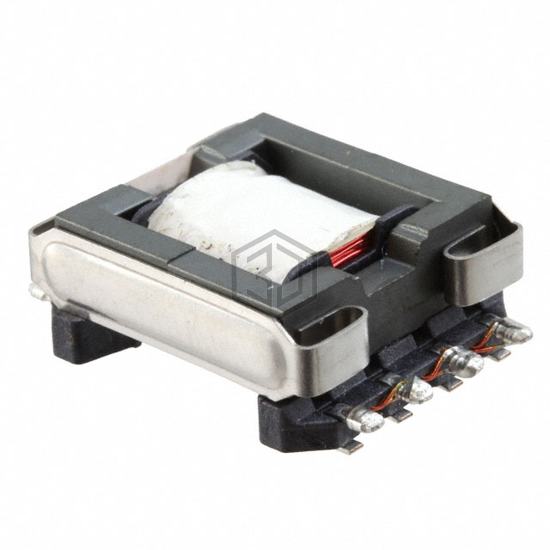

FIXED IND 100UH 2.1A 90 MOHM SMD
24518 is a Fixed Inductors manufactured by Schott Corporation. FIXED IND 100UH 2.1A 90 MOHM SMD. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 2.1 A, size / dimension 0.895" L x 0.660" W (22.73mm x 16.76mm).
In Stock: 103
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Type | - |
| Material - Core | - |
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.1 A |
| Current - Saturation (Isat) | 1.77A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 90mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.895" L x 0.660" W (22.73mm x 16.76mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for 24518 and get a quote within 24 hours.
