COMPLETE BODY/CONTACT ASSEMBLY A

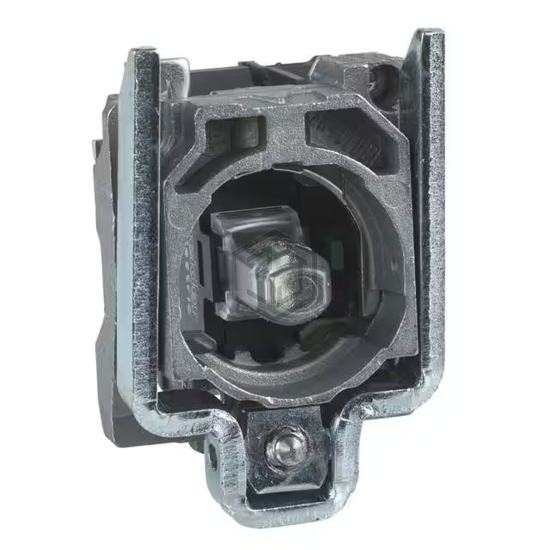

ZB4BW0B32 is a Pushbutton Switches manufactured by Schneider Electric. COMPLETE BODY/CONTACT ASSEMBLY A. Key specifications: mounting type Panel Mount, Front, operating temperature -40°C ~ 70°C, voltage rating - dc 125 V, current rating (amps) 6A (AC), 550mA (DC).
In Stock: 7,286
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | SPST-NC |
| Switch Function | Off-On |
| Current Rating (Amps) | 6A (AC), 550mA (DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Rectangular, Button (Not Included) |
| Actuator Marking | - |
| Color - Actuator/Cap | Green |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 VDC |
| Termination Style | Screw Terminal |
| Ingress Protection | - |
| Features | - |
| Panel Cutout Dimensions | - |
| Operating Temperature | -40°C ~ 70°C |
Submit your RFQ for ZB4BW0B32 and get a quote within 24 hours.
