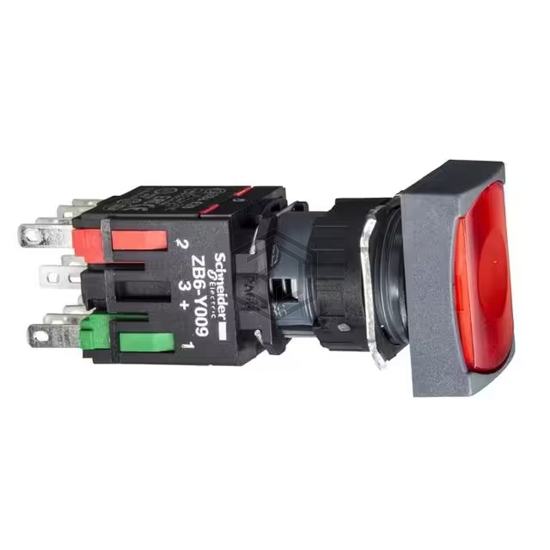

COMPLETE ILLUMINATED PUSH BUTTON
XB6DF4B5B is a Pushbutton Switches manufactured by Schneider Electric. COMPLETE ILLUMINATED PUSH BUTTON. Key specifications: mounting type Panel Mount, Front, operating temperature -25°C ~ 70°C, voltage rating - dc 125 V, current rating (amps) 3A (AC), 220mA (DC).
In Stock: 6,835
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Front |
| Type | Standard, Illuminated |
| Circuit | DPST-NO/NC |
| Switch Function | On-Off, Off-On |
| Current Rating (Amps) | 3A (AC), 220mA (DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Rectangular, Button, Flush |
| Actuator Marking | - |
| Color - Actuator/Cap | Red |
| Illumination Type, Color | LED, Red |
| Illumination Voltage (Nominal) | 12 VDC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 16.00mm Dia |
| Operating Temperature | -25°C ~ 70°C |
Submit your RFQ for XB6DF4B5B and get a quote within 24 hours.
