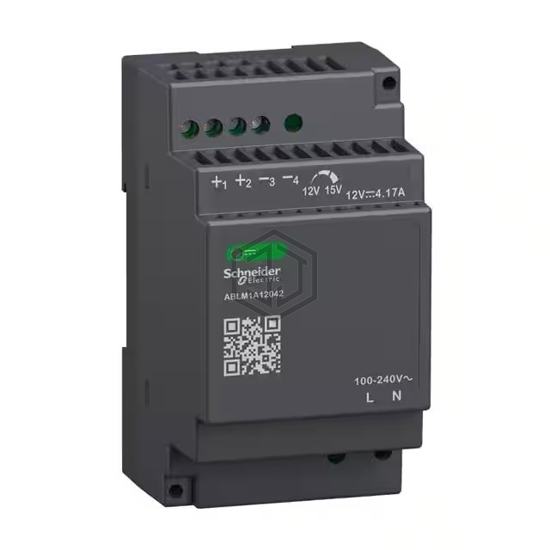

REGULATED POWER SUPPLY, 100-240V
ABLM1A12042 is a Industrial, DIN Rail Power Supplies manufactured by Schneider Electric. REGULATED POWER SUPPLY, 100-240V. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 4.17A, size / dimension 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm), number of outputs 1.
In Stock: 3,444
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 100 ~ 240 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4.17A |
| Power (Watts) | 50W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Laboratory |
| Efficiency | 88% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | IP20, Universal Input |
| Size / Dimension | 2.19" L x 2.09" W x 3.58" H (55.6mm x 53.1mm x 90.9mm) |
| Approval Agency | CB, CE, CSA, CuL, EAC, EN, IEC, KC, NEC Class 2, UL |
| Standard Number | 60950-1; 61010-1; 62368-1 |
Submit your RFQ for ABLM1A12042 and get a quote within 24 hours.
