REGULATED SWITCH POWER SUPPLY, 3

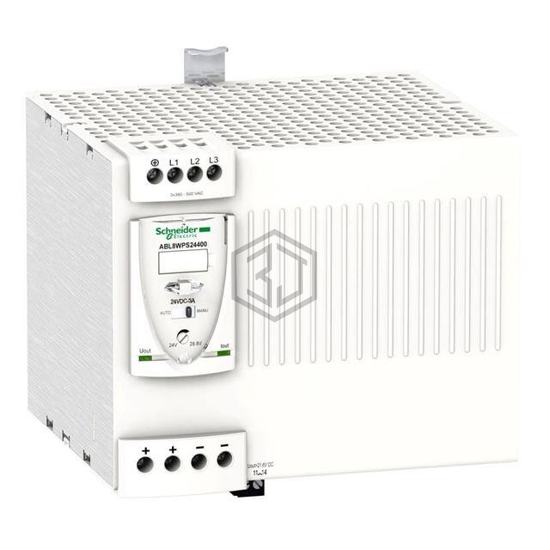

ABL8WPS24400 is a Industrial, DIN Rail Power Supplies manufactured by Schneider Electric. REGULATED SWITCH POWER SUPPLY, 3. Key specifications: operating temperature -25°C ~ 60°C (With Derating), current - output (max) 40A, size / dimension 6.30" L x 6.54" W x 5.63" H (160.0mm x 166.0mm x 143.0mm), number of outputs 1.
In Stock: 8,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 380 ~ 500 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -25°C ~ 60°C (With Derating) |
| Features | Adjustable Output, IP20, PFC |
| Size / Dimension | 6.30" L x 6.54" W x 5.63" H (160.0mm x 166.0mm x 143.0mm) |
| Approval Agency | CCSAus, CE, CSA, EAC, ENC, IEC, RCM, UL |
| Standard Number | 60950-1; 62368-1; UL 508 |
Submit your RFQ for ABL8WPS24400 and get a quote within 24 hours.
