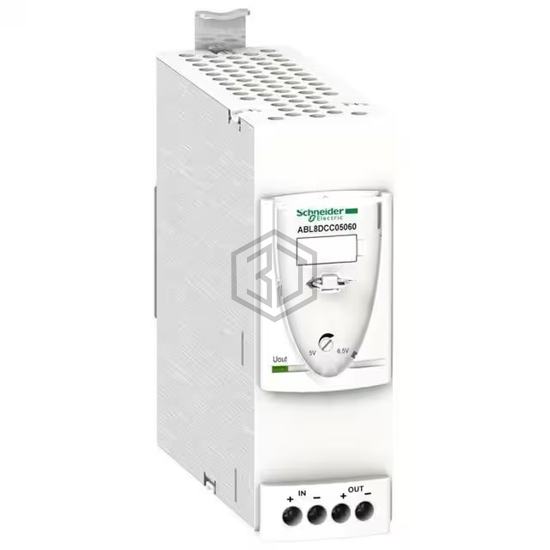

CONVERTER MODULE 30 W - 24..28.8
ABL8DCC05060 is a Industrial, DIN Rail Power Supplies manufactured by Schneider Electric. CONVERTER MODULE 30 W - 24..28.8. Key specifications: operating temperature -25°C ~ 60°C, current - output (max) 6A, size / dimension 6.50" L x 5.71" W x 2.56" H (165.0mm x 145.0mm x 65.0mm), number of outputs 1.
In Stock: 3,237
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 24V |
| DC Voltage - Input (Max) | 28.8V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 30W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -25°C ~ 60°C |
| Features | IP20 |
| Size / Dimension | 6.50" L x 5.71" W x 2.56" H (165.0mm x 145.0mm x 65.0mm) |
| Approval Agency | CCSAus, EAC, EN, IEC, RCM, UL |
| Standard Number | 60950-1 |
Submit your RFQ for ABL8DCC05060 and get a quote within 24 hours.
