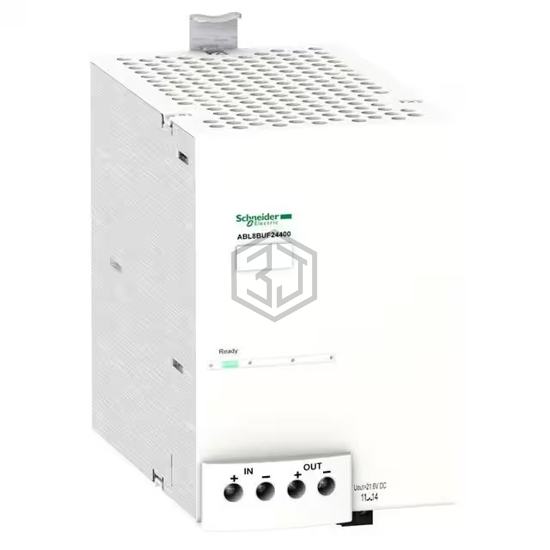

BUFFER MODULE - 24..28.8 V DC -
ABL8BUF24400 is a Industrial, DIN Rail Power Supplies manufactured by Schneider Electric. BUFFER MODULE - 24..28.8 V DC -. Key specifications: operating temperature -25°C ~ 60°C, current - output (max) 40A, size / dimension 7.17" L x 6.69" W x 4.53" H (182.0mm x 170.0mm x 115.0mm), number of outputs 1.
In Stock: 7,738
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 22V |
| DC Voltage - Input (Max) | 30V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | - |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | -25°C ~ 60°C |
| Features | IP20 |
| Size / Dimension | 7.17" L x 6.69" W x 4.53" H (182.0mm x 170.0mm x 115.0mm) |
| Approval Agency | CE, EAC |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for ABL8BUF24400 and get a quote within 24 hours.
