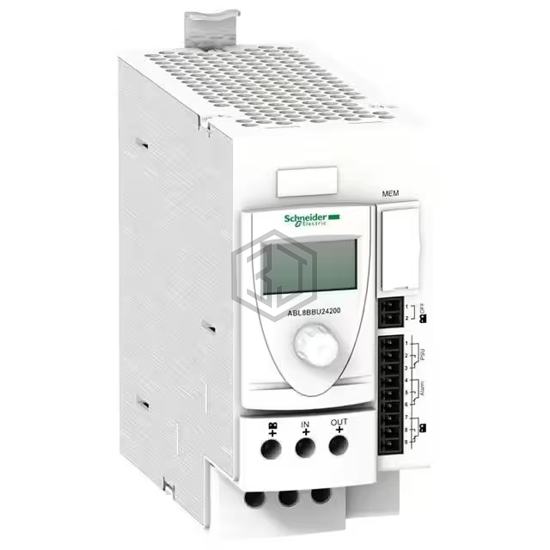

BATTERY CONTROL MODULE - 24..28.
ABL8BBU24200 is a Industrial, DIN Rail Power Supplies manufactured by Schneider Electric. BATTERY CONTROL MODULE - 24..28.. Key specifications: operating temperature -25°C ~ 60°C, current - output (max) 20A, size / dimension 6.30" L x 2.36" W x 4.92" H (160.0mm x 60.0mm x 125.0mm), number of outputs 1.
In Stock: 4,804
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 24V |
| DC Voltage - Input (Max) | 28.8V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | - |
| Voltage - Isolation | 500 V |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | - |
| Operating Temperature | -25°C ~ 60°C |
| Features | Adjustable Output, IP20 |
| Size / Dimension | 6.30" L x 2.36" W x 4.92" H (160.0mm x 60.0mm x 125.0mm) |
| Approval Agency | EAC |
| Standard Number | 60950-1; UL 508 |
Submit your RFQ for ABL8BBU24200 and get a quote within 24 hours.
