CMC 1.3MH 25A 4LN TH

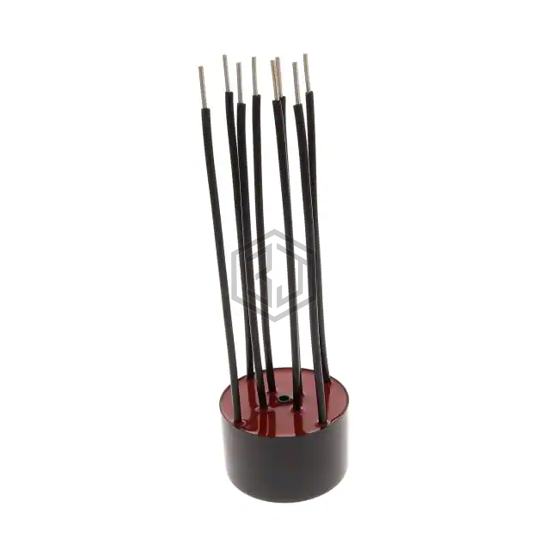

RD8147-25-1M3 is a Common Mode Chokes manufactured by Schaffner EMC Inc.. CMC 1.3MH 25A 4LN TH. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 110°C, voltage rating - dc 850V, package / case Horizontal, 8 PC Pin.
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 1.3 mH @ 400 Hz |
| Current Rating (Max) | 25A (Typ) |
| DC Resistance (DCR) (Max) | 5.05mOhm (Typ) |
| Voltage Rating - DC | 850V |
| Voltage Rating - AC | 600V |
| Operating Temperature | -25°C ~ 110°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 3.150" L x 3.150" W (80.00mm x 80.00mm) |
| Height (Max) | 1.988" (50.50mm) |
| Package / Case | Horizontal, 8 PC Pin |
Submit your RFQ for RD8147-25-1M3 and get a quote within 24 hours.
