CMC 2MH 25A 2LN TH

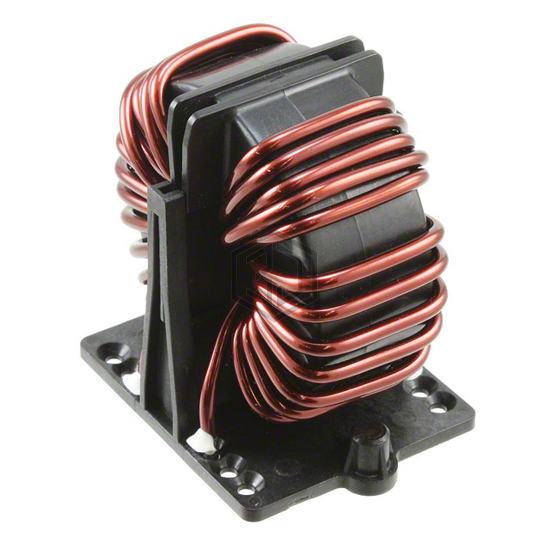

RB8522-25-2M0 is a Common Mode Chokes manufactured by Schaffner EMC Inc.. CMC 2MH 25A 2LN TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - dc 1000V (1kV), package / case Vertical, 8 PC Pin.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 2 mH @ 1 kHz |
| Current Rating (Max) | 25A |
| DC Resistance (DCR) (Max) | 4.2mOhm (Typ) |
| Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.165" L x 1.807" W (55.00mm x 45.90mm) |
| Height (Max) | 2.677" (68.00mm) |
| Package / Case | Vertical, 8 PC Pin |
Submit your RFQ for RB8522-25-2M0 and get a quote within 24 hours.
