CMC 3MH 16A 2LN TH

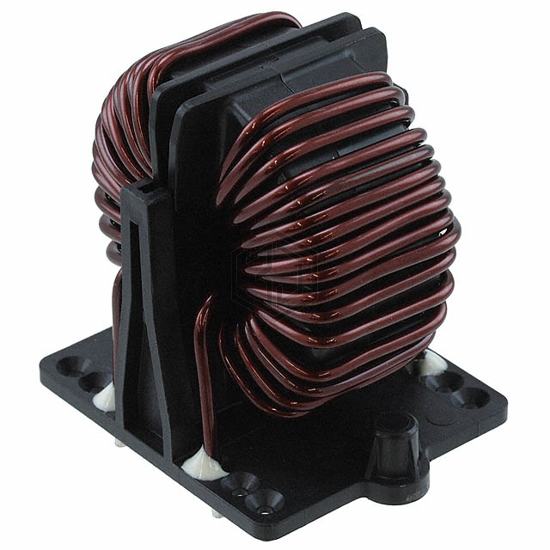

RB8522-16-3M0 is a Common Mode Chokes manufactured by Schaffner EMC Inc.. CMC 3MH 16A 2LN TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - dc 1000V (1kV), package / case Vertical, 8 PC Pin.
In Stock: 198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 3 mH @ 400 Hz |
| Current Rating (Max) | 16A |
| DC Resistance (DCR) (Max) | 8.4mOhm (Typ) |
| Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 600V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.969" L x 1.709" W (50.00mm x 43.40mm) |
| Height (Max) | 2.283" (58.00mm) |
| Package / Case | Vertical, 8 PC Pin |
Submit your RFQ for RB8522-16-3M0 and get a quote within 24 hours.
