COMMON MODE CHOKE

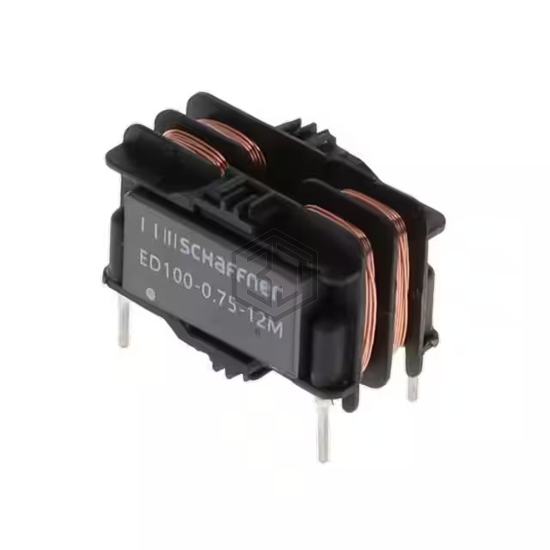

ED100-0.75-12M is a Common Mode Chokes manufactured by Schaffner EMC Inc.. COMMON MODE CHOKE. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage rating - ac 300V, package / case Vertical, 4 PC Pin.
In Stock: 450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Impedance @ Frequency | - |
| Inductance @ Frequency | 12 mH @ 10 kHz |
| Current Rating (Max) | 750mA |
| DC Resistance (DCR) (Max) | 1.2Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 300V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.945" L x 0.563" W (24.00mm x 14.30mm) |
| Height (Max) | 0.610" (15.50mm) |
| Package / Case | Vertical, 4 PC Pin |
Submit your RFQ for ED100-0.75-12M and get a quote within 24 hours.
